Simaudio 110LP V2 Phono stage

Simaudio 110LP V2 Phono stage

$0.00 USD
$0.00 USD
Sale Sold out
Shipping calculated at checkout.

Purchase & Setup

All Simaudio products in our collection are beautifully displayed on HRS audio stands and carefully optimized to achieve their full potential. In accordance with Simaudio’s guidelines, these components are available for in-store purchase or can be delivered and professionally set up in your home by our team. We proudly support and honor the Simaudio dealer network, ensuring the finest ownership and listening experience.

Simaudio MOON 110LP V2 – The Art of Analog Reimagined

The MOON 110LP V2 is a masterful phono preamplifier that elevates the analog listening experience to new heights. Designed with meticulous attention to detail, it offers a harmonious blend of precision, flexibility, and musicality. Whether you're a vinyl enthusiast or a newcomer to analog sound, the 110LP V2 ensures that every note resonates with clarity and depth.

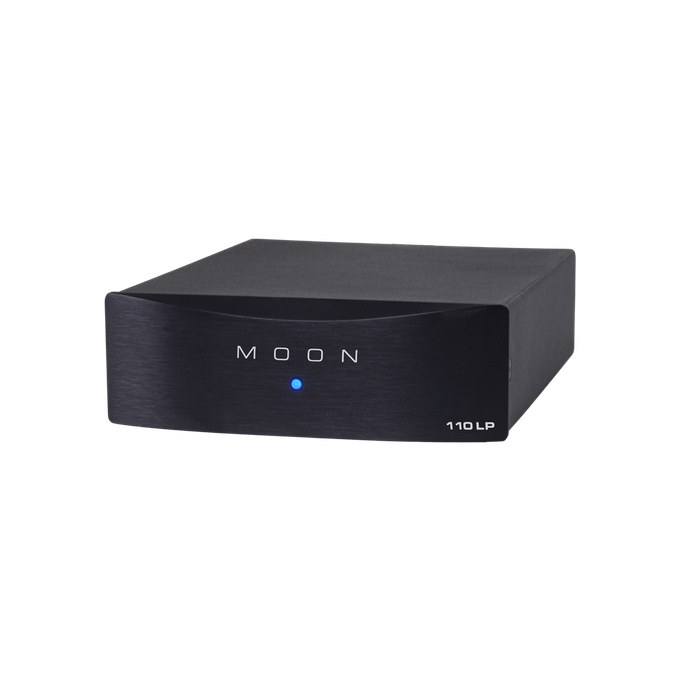

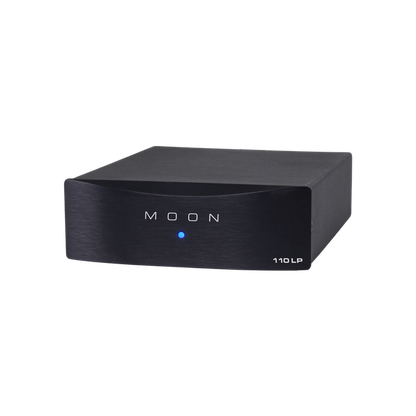

This preamplifier is a testament to Simaudio's commitment to excellence, incorporating advanced features that allow for personalized tuning to match your specific cartridge and system. Its compact, all-aluminum chassis houses a mirror-image symmetrical circuit layout, ensuring optimal signal integrity and minimal distortion.

Key Specifications

  • Type: MM/MC Phono Preamplifier

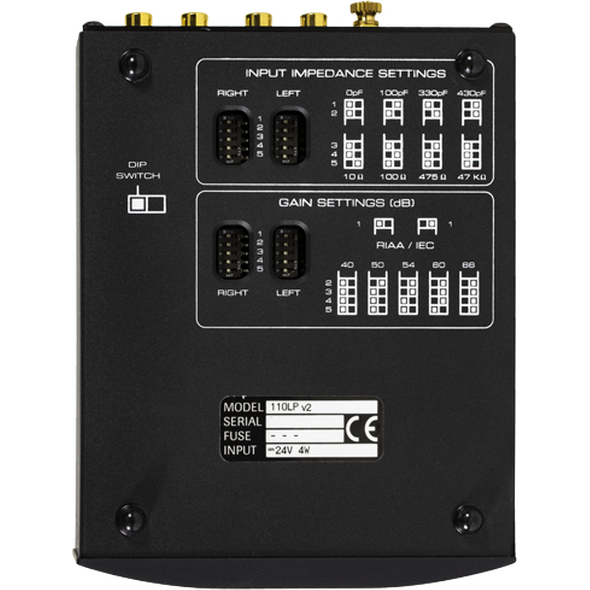

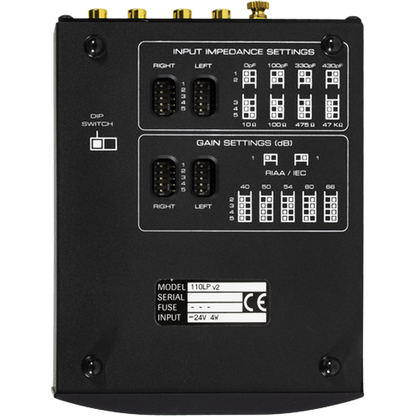

  • Input Impedance: Adjustable (10Ω, 100Ω, 475Ω, 47kΩ)

  • Input Capacitance: Adjustable (0pF, 100pF, 330pF, 430pF)

  • Gain Settings: Adjustable (40dB, 50dB, 54dB, 60dB, 66dB)

  • Equalization Curve: Selectable (IEC / RIAA)

  • Signal-to-Noise Ratio:

    • 104 dB (at 40 dB gain)

    • 87 dB (at 60 dB gain)

  • Frequency Response: 20Hz – 20kHz (±0.5dB)

  • Total Harmonic Distortion: 0.002%

  • Intermodulation Distortion: 0.002%

  • Circuit Layout: Mirror-image symmetrical

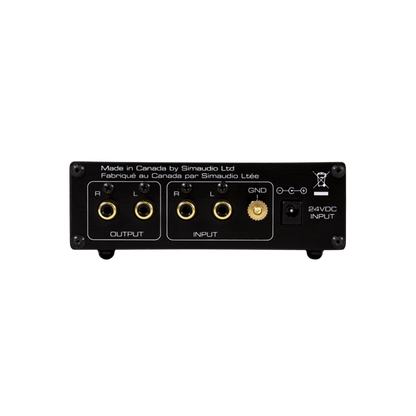

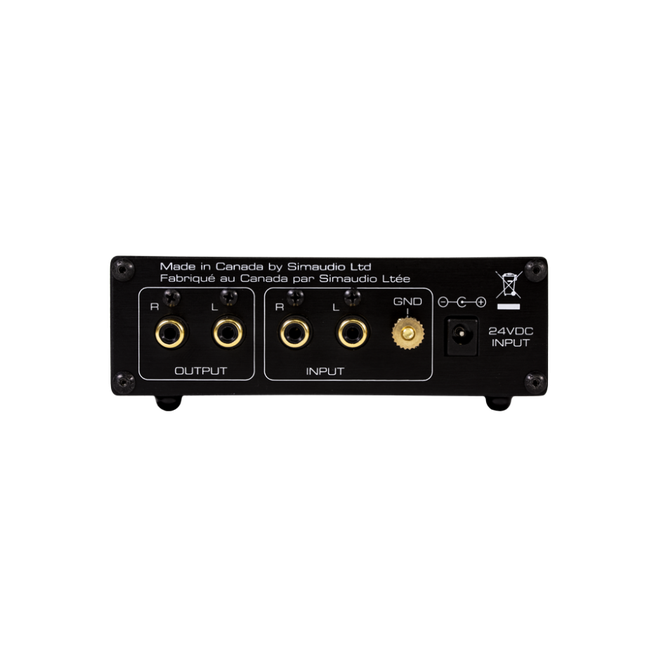

  • Inputs: Single-ended (1 pair RCA)

  • Chassis: Rigid all-aluminum with gold-plated RCA connectors

  • Dimensions (H x W x D): 4.2" x 5.0" x 6.5" (107mm x 127mm x 165mm)

  • Weight: 3.3 lbs (1.5 kg)
