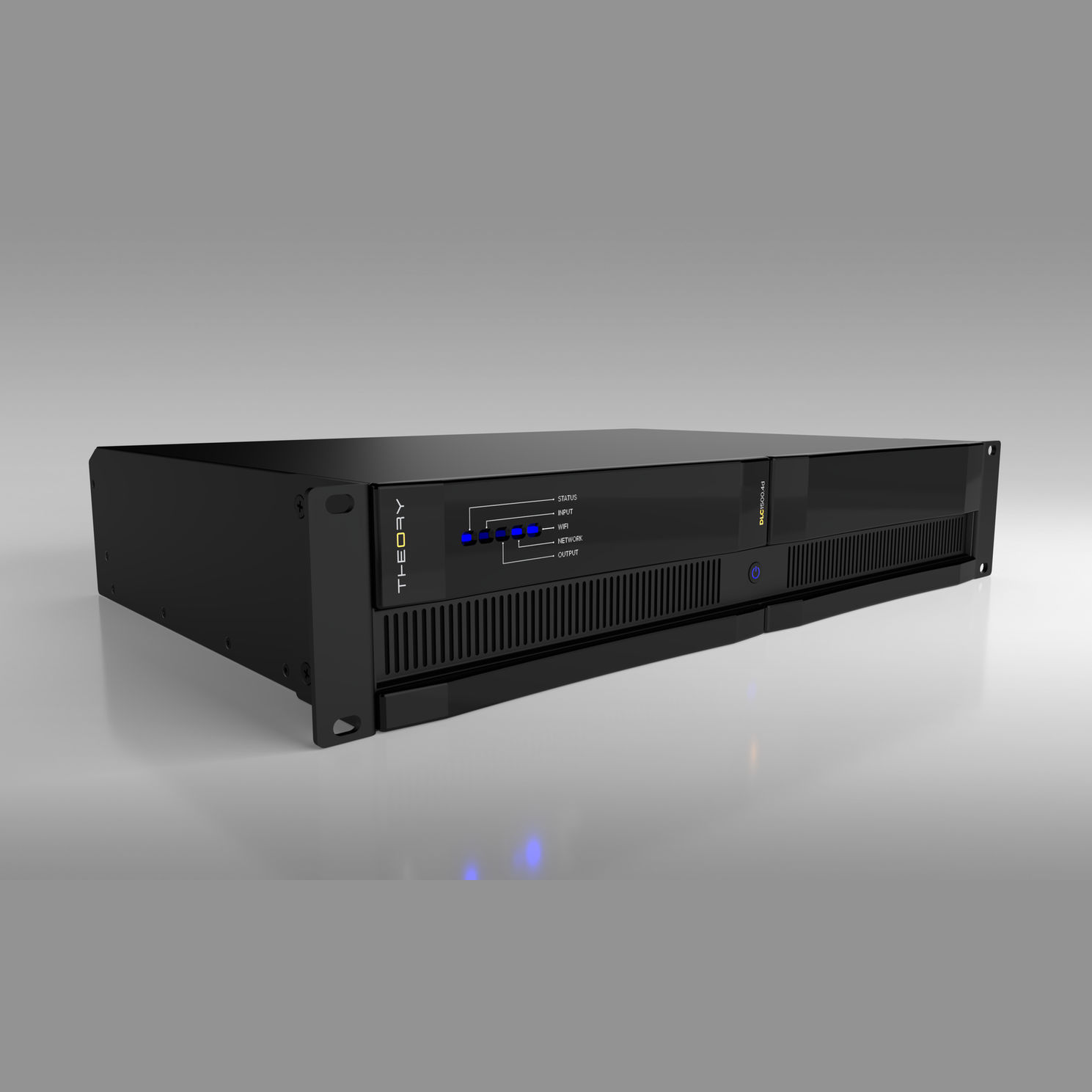

Theory DLC-1500. 4d (6000)

Theory DLC-1500. 4d (6000)

Regular price $2,613.00 USD
Regular price Sale price $2,613.00 USD
Sale Sold out
Shipping calculated at checkout.

 KEY FEATURES:
 • 2U 4-Channel Amplified Loudspeaker Controller with
Dante & AES67
 • 2x 1,500W (BTL) @ 100V, 2x 1,200W (BTL) @ 70V
 • 4x 400W (SE) and 2x 1,500W (BTL) @ 8-ohms
 • 4x 800W (SE) and 2x 1,500W  (BTL) @ 4-ohms
 • 4x 800W (SE) @ 2-ohms
 • Drives up to 16 Theory 16-ohm Speakers at Low-Z or up to
400 in 70V/100V Operation


 OVERVIEW:
 The DLC-1500.4d delivers a massive 3,000W in a 16-pound chassis.
Capable of delivering 1,500W into 4 or 8-ohms from any channel
pair, or 800W into 2 or 4-ohms all channels are driven, this 16lb., 2U
loudspeaker controller packs new levels of power into minimal
rack space. If that weren’t enough, the DLC-1500.4d can drive
70V/100V hi-Z loudspeakers direct - no internal transformer is
required.
 The DLC-1500.4d is equipped with Dante / AES67 audio-over-IP
digital I/O making setting up and deploying even complex distributed audio systems painless and bullet-proof. No bulky analog
audio cables are required.
 The DLC-1500.4d can drive up to 16 Theory 16-ohm loudspeakers
in Lo-Z mode, or more than 300 (!) in Hi-Z mode. You read that
right, 300+ Theory speakers at 7.5W each.
 Theory DLC loudspeaker controllers can be configured via the
on-board web interface accessible via wired Ethernet, or the
on-board WiFi access point and include parametric EQ, delay,
gain, and limiter DSP objects to make system optimization easy.
Rack ears are included. Full API and control modules for AMX,
Control4. Crestron, Crestron Home, ELAN, Q-SYS, and RTI are
available.
 The performance and versatility of the DLC-1500.4d must
be experienced to be believed. Book a visit to the Theory
Southern California Experience Center today to learn just
how valuable this little loudspeaker controller will be in your
system design toolbox.

 APPLICATIONS:
 Background and Foreground Business Audio Systems
 Bars and sports bars, restaurants, retail stores, hotels, houses
of worship, corporate conferences, screening rooms, lobbies,
casinos, etc.
 Distributed Audio
 Residential and commercial distributed audio systems, air
ports, higher-ed campuses, and education facilities.
 High Output Surround Sound Systems
 Residential and commercial media rooms, gaming systems,
executive boardrooms, etc.
 Music and Video post-production
 Surround and Dolby Atmos mix rooms where maximum out
put in compact depth is required, music post production.
 Two-channel Music Systems
 Premium residential and corporate stereo music systems,
music and Performance Higher education
