Meridian HD621 HDMI Audio Processor

Please contact the store for pricing!

HD621 Product highlights
 •    Six-input    HDMI    switch.
 •    HDMI    video output.
 •    Extracts up to eight channels of high-resolution audio from the    HDMI    data stream, supplying
them to separate audio-only outputs.
 •    Connects HDMI audio directly to a Meridian processor.
 •    SmartLink coaxial digital audio output (up to 8 channels).
 •    Multichannel Meridian High Resolution (MMHR): balanced digital audio    output via RJ45/Cat 5 cable (up to 8 channels).
 •    Up/down sampling of digital audio.
 •    Audio FIFO buffering and resolution enhancement improves    PCM    audio received via    HDMI.
 •    Lip-sync control compensates for latency resulting from external digital video processing.
 •    Keeps HDMI video signals away from your audio equipment, minimizing signal degradation.
 Outline specification
 Form factor
 •   1U 19in rack mounting. Available without racking ears Power
 •    Internal universal power supply,100–250Vac

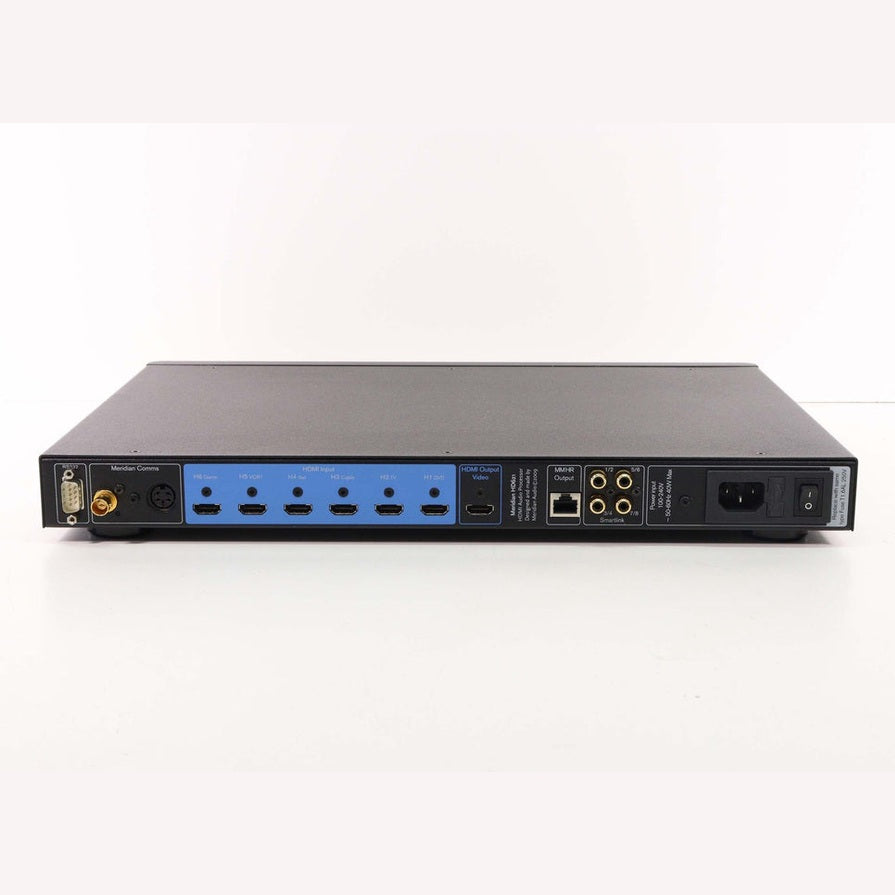

 Connections
 •    Power input (IEC connector)
 •    DB9M Sub RS232 serial connector
 •    BNC and DIN    Meridian Comms
 •    Six HDMI input sockets
 •    HDMI output
 •    8-channel MMHR digital audio out (RJ45)

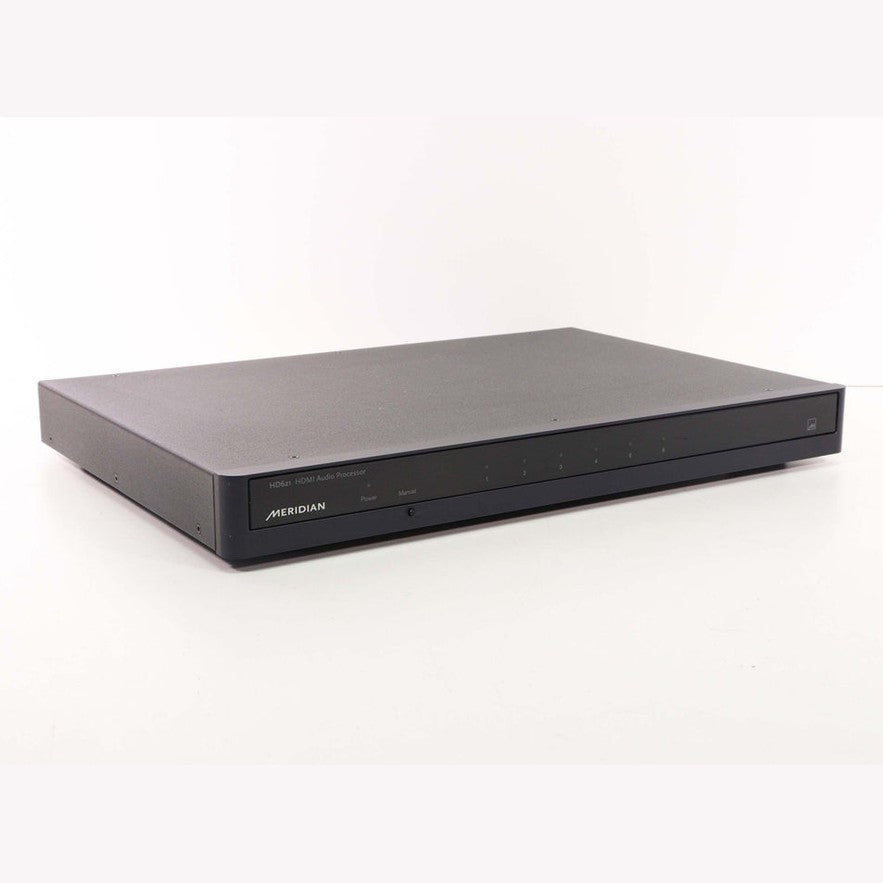

 •    8-channel coax digital audio out (4 x phono) Front-panel Indicators
 •    Power LED
 •    6 x HDMI Input LEDs (selected input lights)
