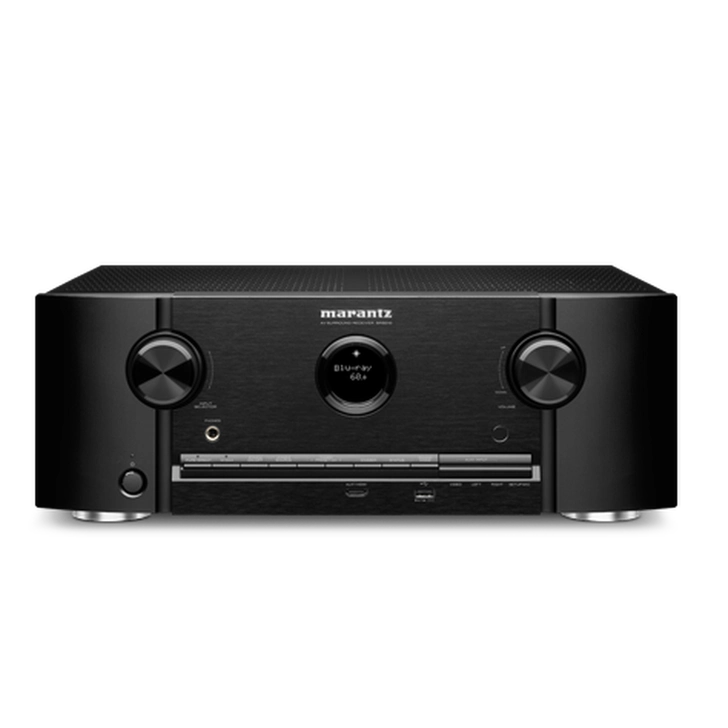

Marantz SR 5010

Highlights:

Power and Processing:

• 7-channel amplifier
• 100 watts per channel into 8 ohms (20-20,000 Hz) at 0.08% THD, with 2 channels driven
• Dolby® and DTS® surround sound decoding, including Dolby Atmos
  • next-generation DTS:X surround sound will be available via a future firmware update
• video upconversion (up to 1080p and 4K) for analog and HDMI sources
• Audyssey "Silver" speaker calibration and system optimization includes:
  • Audyssey Laboratories' MultEQ® XT six-point auto setup and room calibration system (microphone included)
  • Audyssey Dynamic Volume mode to keep listening levels steady
  • Audyssey Dynamic EQ for fuller sound at lower listening levels

Digital Music Options:

• built-in Wi-Fi for listening to music from a networked PC, free Internet radio, and music services
  • includes support for Pandora, SiriusXM Internet radio, and free Internet radio streams with vTuner (subscription required for some services)
  • Spotify Connect lets you play Spotify's streaming music library through the receiver via your smartphone or tablet (requires Spotify app and a premium subscription)
• Apple AirPlay for streaming music from an iPhone®, iPad®, iPod touch® or computer running iTunes®
• built-in Bluetooth for wireless music listening with smartphones, tablets, and compatible computers
• front-panel USB input for connecting an iPod®, iPhone, or thumb drive
  • direct digital connection for iPod or iPhone bypasses the device's digital-to-analog converter for better sound
• plays high-resolution digital music files via a USB storage device or a networked computer (PCM up to 24-bit/192kHz resolution; DSD up to 2.8 MHz .dsf files)
• DLNA is certified for streaming music with compatible devices and computers
• M-DAX™ (Marantz Dynamic Audio eXpander) for better sound from MP3s and other digital music files

Multi-room Audio:

• Dual-room/dual-source output
  • power amp assign function lets you use the surround back speaker outputs for a second room while enjoying 5.2-channel sound in the main room
• line-level stereo audio output for 2nd room (additional receiver, amplifier, or powered speakers required)
• optical/coaxial digital and HDMI audio sources cannot be output to Zone 2

Audio Performance Features:

• Marantz's Hyper Dynamic Amplifier Module (HDAM) offers improved dynamic range and detail while reducing noise
• current feedback circuit for accurate, natural sound at all volume levels
• Pure Direct mode turns off unused circuitry for cleaner audio signals
• bi-amp capability with compatible front speakers by reassigning "surround back" channels

Connections:

• HDMI 2.0a audio/video switching: 8 in (includes 1 front-panel input), 2 out
  • HDCP 2.2 technology ensures compatibility with 4K Ultra HD sources and TVs (all HDMI inputs and outputs)
  • HDR-compatible for extended picture contrast and brightness with compatible 4K TVs and HDR-encoded content
• component video switching: 2 in, 1 out
• composite video switching: 3 in, 1 out (includes front-panel input)
• digital audio inputs: 2 optical and 2 coaxial
• 5 analog stereo audio inputs
• 7.2-channel preamp outputs include outputs for 2 powered subwoofers
• no phono input — to connect a turntable you'll need to add a phono preamp
• front-panel USB port for audio playback from USB memory devices and an iPod or iPhone
• outputs for 7 speakers (Front L/R, Center, Surround L/R, Surround Back L/R)
  • Surround Back speakers can be reassigned for Zone 2, Front Height, Front B, or bi-amping compatible front speakers
• Ethernet port for wired network connection
• RS-232C, remote (IR), and 12-volt-trigger connections for use with external controllers
• 1/4" headphone output
• detachable power cord

General Features:

• 4K/60p and 3D video pass-through
• free Marantz remote app lets you use your Apple or Android device as a Wi-Fi® remote
• Setup Assistant guides you through the initial connection process and settings
• intuitive, full-color on-screen guide
• Video Select lets you listen to music while watching video from a different source
• HDMI standby pass-through allows HDMI switching without powering up the receiver
• AM/FM tuner
• remote control
• 17-5/16"W x 6-5/16"H x 14-7/16"D
• weight: 22.1 lbs.

Marantz SR-5010 owner's manual

If you need assistance accessing this owner's manual, please give us a call.

• 7.2ch AV receiver
• 6' AC power cord
• Remote control (RC024SR)
• Two "AAA" batteries
• Sound calibration microphone (ACM1HB)
• Microphone stand
• FM wire antenna
• AM loop antenna
• Quick Start Guide
• Safety Instructions
• Notes on Radio
• "Firmware Update" note
• Warranty Information (US/CA)
• Microphone Stand Assembly Instructions
• Sheet of self-adhesive cable labels
• Spotify brochure
