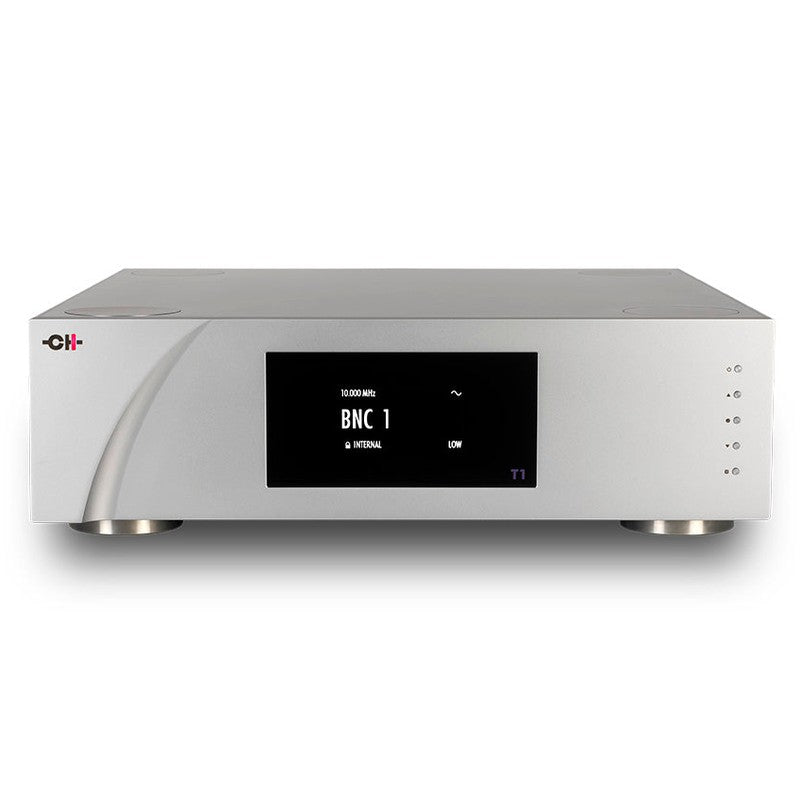

CH Precision T1 10MHz Time Reference

The problem is that as soon as you have more than one
box (and one master clock) in the system – for instance, if
you use a transport and DAC – then the errors can increase
exponentially. The easiest solution is to synchronize the
two clocks, designating one as the master and slaving
the other to it. That’s exactly the solution provided by the
Clock-Sync cards available for the CH Precision D1, C1 and I1,
while the sophisticated software control incorporated into
each of the units allows owners to designate master and
slave according to circumstances and system topology. But
what’s better than syncing two or more units to a single
master clock? Syncing them all to a single, superior, external
reference point – a reference like the T1 Time Reference
external clock.
The T1 generates a super accurate, low-jitter signal that
delivers measurably lower phase noise and more accurate
transfer and conversion of digital signals. It is built around
a high frequency 10MHz oven-controlled oscillator (OCXO),
its core temperature and output further stabilized by
encapsulation in a mechanically isolated billet aluminum
block. Why not just use one of the popular and readily
available Rubidium clock modules like everybody else?
Because those Rubidium modules have a limited life
span – generally between six and eight years – and they
contain radioactive material. At CH Precision we expect us
products to have a much longer working life than that, so
incorporating components with a finite life is contrary to all
our beliefs – especially if those components then present a
serious disposal issue.
By paying attention to the physical engineering and
temperature control of our OCXO circuit, providing it with
multiple buffers and a sophisticated power supply, we can
match or exceed the performance of Rubidium clocks –
without their associated issues. And to ensure the absolute
accuracy of the oscillator output, you can sync the T1 to
the GPS network, its satellites controlled by Cesium atomic
clocks, the most stable and accurate time source known
to man. Their 1Hz sync signal prevents any drift in the T1’s
output, not just now but for years to come, ensuring that
your digital signals are (and always will be) handled as
accurately and carefully as humanly possible.
