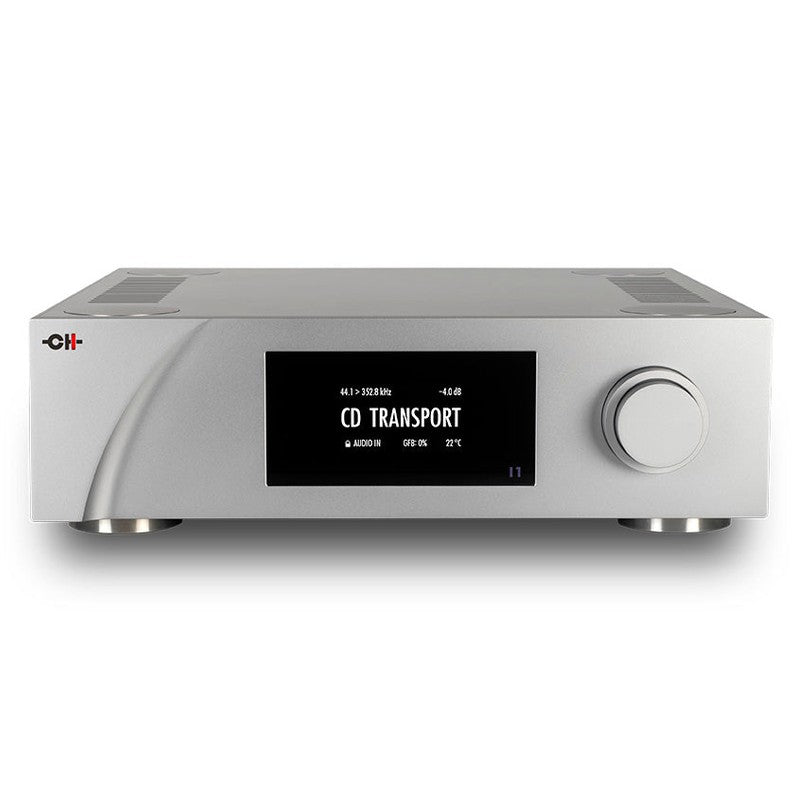

CH Precision I1 Universal Integrated Amplifier
CH Precision I1 Universal Integrated Amplifier
Couldn't load pickup availability
The I1 is supplied in standard form equipped with four
digital inputs (CH-Link HD, AES/EBU, S/PDIF and TopLink -
although a second identical digital input board can be added
in the spare chassis slot if you need the extra connections)
one set of balanced and two pairs of single-ended analog
inputs. The factory fitted Ethernet Control Board, which
allows the unit to be remotely accessed, configured and
controlled via the CH-Control Android App, can be replaced
with a full network streaming capable Ethernet input and
a separate, asynchronous USB input card can be added
to enable connection of computer sources for file replay.
The discrete, fully complementary analog input boards
can be fitted with additional internal circuit blocks that
allow owners to convert either or both of the RCA analog
inputs into current-sensing MC phono-inputs, complete
with switchable replay EQ settings for RIAA, eRIAA, Decca,
Columbia, EMI and Teldec (DGG) curves. Finally, a Clock Sync board allows you to slave the I1 to external master
clocks, or designate its internal clock as the system master.
Dominating the interior of the I1 chassis, you’ll find a
massive 1000VA transformer that’s more than capable of
supporting the 100 watt/channel into 8 Ohms rated output;
in combination with the 100,000uF of reservoir capacitance
it allows the output stage to handle awkward loudspeaker
loads with ease.
How did we pack so much functionality into a single chassis?
By leveraging the power of sophisticated software control,
modular construction and advanced digital processing.
The I1’s volume control is a remarkable hybrid design,
that uses an R-2R resistor ladder in the analog domain for
setting coarse levels, with fine adjustment taking place in
the digital domain, a combination that allows incredibly
precise level control without eroding bit depth, resolution or
dynamic range. Likewise, the I1’s advanced analog-to-digital
conversion stage allows us to set overall cartridge gain
and replay EQ in the digital domain, providing unparalleled
phono replay flexibility, accuracy and features in an
integrated unit. You mean we turn the analog inputs into
digital? Yes – but if you don’t tell your friends they’ll never
know. Indeed, many listeners swear that the I1’s phono stage delivers some of the finest analog sound they’ve ever
enjoyed!
