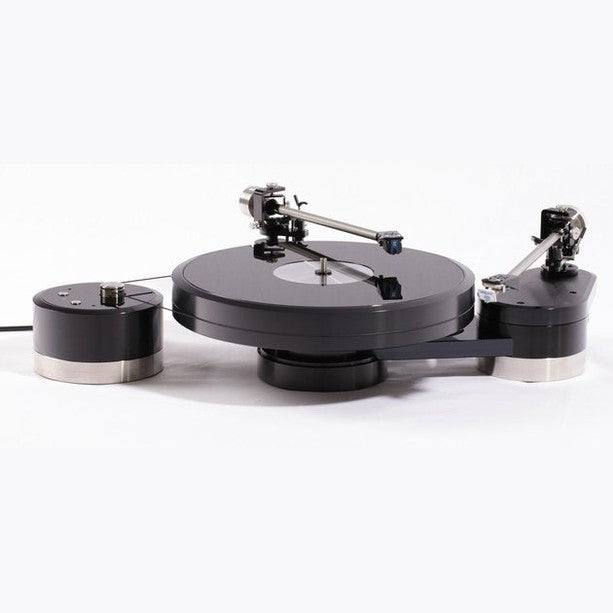

Brinkmann Audio Spyder Turntable
Special in-store deals available.
Radical Freedom. Reference Musicality.
Huge promotions coming soon.
Brinkmann began with a blank sheet of paper—and created something truly extraordinary. The Spyder is a bold design statement that redefines what a reference turntable can be, marrying unrivaled versatility with the deeply human musicality for which Brinkmann is revered.
This is not just a turntable.
It’s a platform for exploration.
Up to FOUR Tonearms. Zero Compromise.
The Spyder accommodates up to four tonearms (9″–12″) and offers complete placement freedom, regardless of how many are installed. Its ingenious, movable, and rotating arm boards allow simple, ultra-precise alignment—without play—making cartridge and arm experimentation effortless and exact.
From single-arm purity to multi-arm analog nirvana, Spyder evolves with you.
Borrowed from the Flagship. Perfected for Real Music.
Developed using technologies pioneered in Brinkmann’s statement Balance turntable, Spyder benefits from years of obsessive materials research and mechanical refinement:
-
Heated, zero-maintenance hydrostatic bearing
Optimized tolerances, ultra-low friction, and vanishing noise -
Bespoke “Sinus” 4-phase, 12-pole motor
Smooth, silent, and supremely stable -
Largest solid-state power supply
With an optional RöNt II vacuum-tube power supply for even greater harmonic richness -
22-lb resonance-optimized alloy platter with crystal glass mat
Rock-solid speed stability, massive dynamics, and record-friendly surfaces
The result is a jet-black background, explosive dynamic contrasts, and a flow of music that feels organic, unforced, and emotionally gripping.
Precision That Serves the Music
Spyder’s engineering exists to disappear. Speed accuracy is exact, noise is banished, and timing is impeccable—so phrasing, rhythm, and texture arrive intact. Complex musical passages remain composed, expansive, and alive.
This is Brinkmann's musical truth—wide dynamics, emotional involvement, and absolute control—in the most versatile turntable design available today.
Specifications
-
Drive Mechanism: Belt drive with “Sinus” 4-phase, 12-pole motor
-
Power Supply: External solid-state (standard), optional RöNt II tube supply
-
Bearing: Hydrostatic, zero-maintenance bearing with heating
-
Platter: Resonance-optimized anodized aluminum alloy; crystal glass mat & clamp
-
Chassis: Resonance-optimized anodized aluminum alloy
-
Arm Boards: Movable/rotating; accepts 9″–12″ tonearms and select linear trackers
-
Connectors: RCA, XLR, or feed-through for 5-pin DIN tonearms
-
Speeds: 33⅓ & 45 rpm (switch selectable, LED indicator)
-
Speed Accuracy: 0.0% (adjustable), ±10% fine trim
-
Wow & Flutter: 0.07% linear, 0.035% weighted (DIN 45507)
-
Rumble: –66 dB (DIN), –70 dB (measuring adapter)
-
Speed-up Time: 6 s (33⅓), 8 s (45)
-
Total Weight: 21 kg
Available at Sunny Components
Expert tonearm matching, cartridge setup, and white-glove installation available.
Major promotions coming soon—contact us to secure preferred configurations.
Sunny Components Inc.
1370 E Cypress Street, Suite D, Covina, CA 91724
📞 (626) 975-1353
🌐 sunnyaudiovideo.com
Spyder: limitless by design. Reference by nature.
