Acoustical Systems Aquilar 10 new in stock.

Acoustical Systems Aquilar 10 new in stock.

$12,990.00 USD
$14,995.00 USD $12,990.00 USD
Sale Sold out
Shipping calculated at checkout.

Aquilar 10

The AQUILAR (origin from the ancient Latin “Aquila” – the eagle) offers many of the prime choice and expensive materials, as well as most of the unique technical key solutions that make the AXIOM’s performance easily stand heads above all competition.


To create an all-new superior 10″ tonearm design – which also should be easy to mount on all turntables thanks to the slightly reduced effective length.

Stock


Technical Specification

  • Very easy and swift setup
  • Customized dedicated 3d-alignment template
  • Non-resonance hd18 tungsten carbide counterweight
  • Unique acoustical-systems non-resonance titanium/carbon-hybrid arm wand
  • Precision leveling of bearing plane – independent of arm board/turntable
  • Adjustable sra, vta, azimuth, overhang, and offset angle at the headshell
  • VTA adjustment on-the-fly
  • Non-touch magnetic anti-skating on-the-fly
  • Dynamic anti-skating following the tangential curve
  • The design is based on the unique uni-din* geometry
  • The critical inner wiring is fine 5n pure silver litz wire

We do have a Demonstration Brinkmann Spyder table fitted with the 10 inch Aquilar tonearm. This complete kit is $20,000

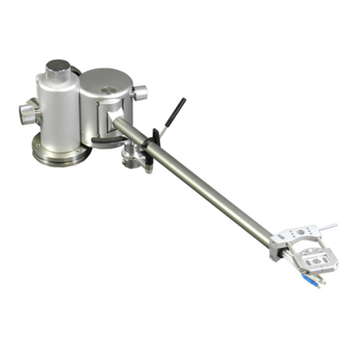

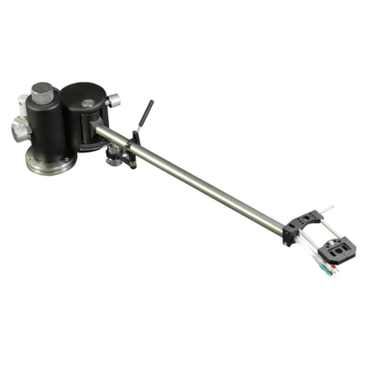

Acoustical Systems AQUILAR Tonearm

Hand-Crafted in Southern Bavaria, Germany

Precision • Harmony • Musical Truth

The AQUILAR from Acoustical Systems is one of the world’s most meticulously engineered tonearms — a reference-class instrument built for the listener who demands absolute musical purity. Designed by Dietrich D. Brakemeier and handcrafted in Bavaria, the AQUILAR embodies a perfect marriage of precision mechanics, resonance control, geometry, and artisanal craftsmanship.

Now proudly featured and demonstrated at Sunny Components Inc., Covina CA, with professional mounting and full alignment available for our local customers.

Core Features & Technologies

10” Effective Length

A carefully chosen effective length offering exceptional balance between geometry, tracking stability, and universal table compatibility.

Effortless, Swift Setup

Engineered for ease of installation, allowing precise calibration with minimal effort.

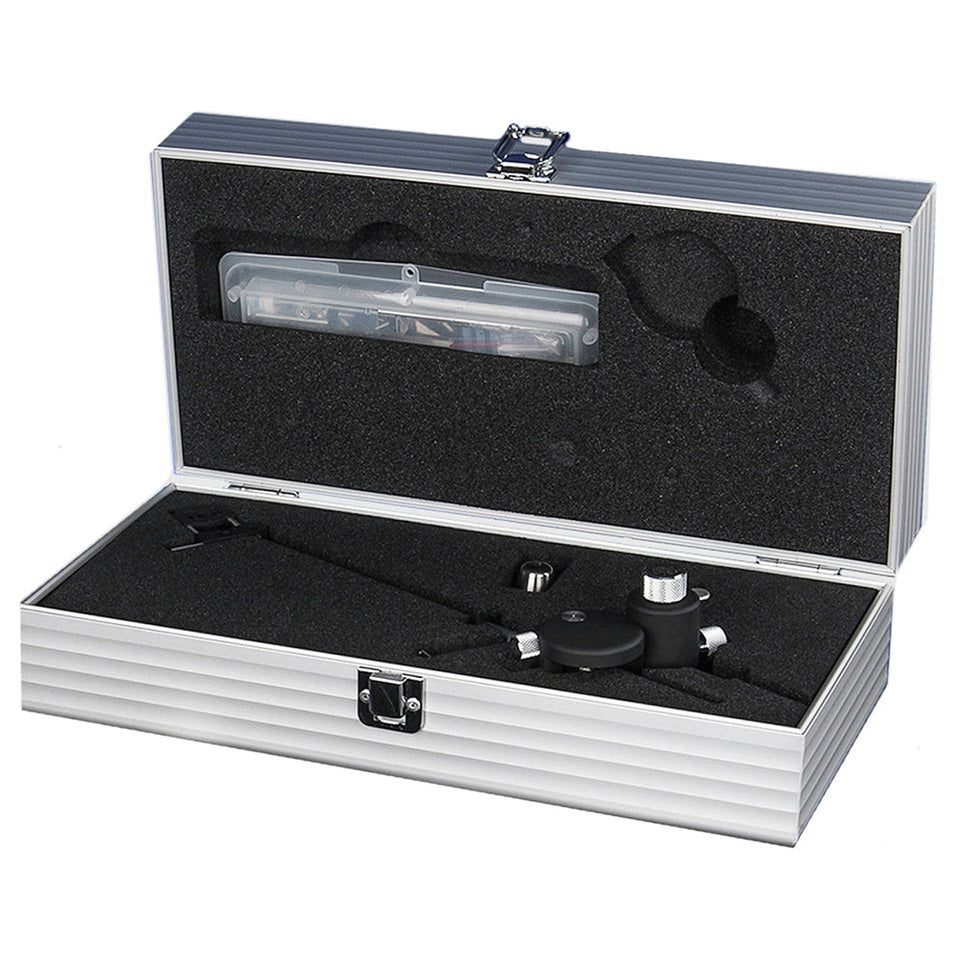

Dedicated 3D Alignment Template

Each AQUILAR includes a customized 3D alignment tool designed specifically for this tonearm to ensure exact geometry and optimized cartridge setup.

HD18 Tungsten-Carbide Counterweight

A dense, non-resonant counterweight machined from HD18 tungsten carbide, providing inert mass and rock-solid tracking.

Titanium / Carbon Hybrid Arm Wand

A proprietary, non-resonant hybrid arm wand combining titanium and carbon for remarkable rigidity, speed, and tonal neutrality.

Independent Bearing-Plane Leveling

The bearing plane can be leveled independent of the turntable or armboard, guaranteeing mechanical integrity even on challenging plinth designs.

Full Mechanical Adjustability

At the headshell, users can adjust:

  • SRA – Stylus Rake Angle

  • VTA – Vertical Tracking Angle

  • Azimuth

  • Overhang

  • Offset Angle

This allows the cartridge to perform at its highest potential.

On-the-Fly Adjustments

  • VTA on-the-fly

  • Non-touch Magnetic Anti-Skating on-the-fly

  • Dynamic anti-skating that follows the tangential tracking curve

These refinements allow real-time adjustments while listening.

UNI-DIN Geometry

Designed around Dietrich Brakemeier’s UNI-DIN geometry, a proprietary system that drastically reduces inner-groove distortion and improves tracking accuracy across the entire record.
Only the AXIOM and the AQUILAR use authentic UNI-DIN geometry.

5N Pure Silver Litz Internal Wiring

The critical internal wiring is a single continuous run of fine 5N silver litz, preserving the most delicate musical information.

Connection Options

Available with two terminal configurations:

1. Direct-to-Phono Lead (1.2 m)

Choose RCA or Balanced XLR for direct connection to your phono stage.

2. Male DIN 5-Pole Connector

Compatible with high-end aftermarket phono cables.

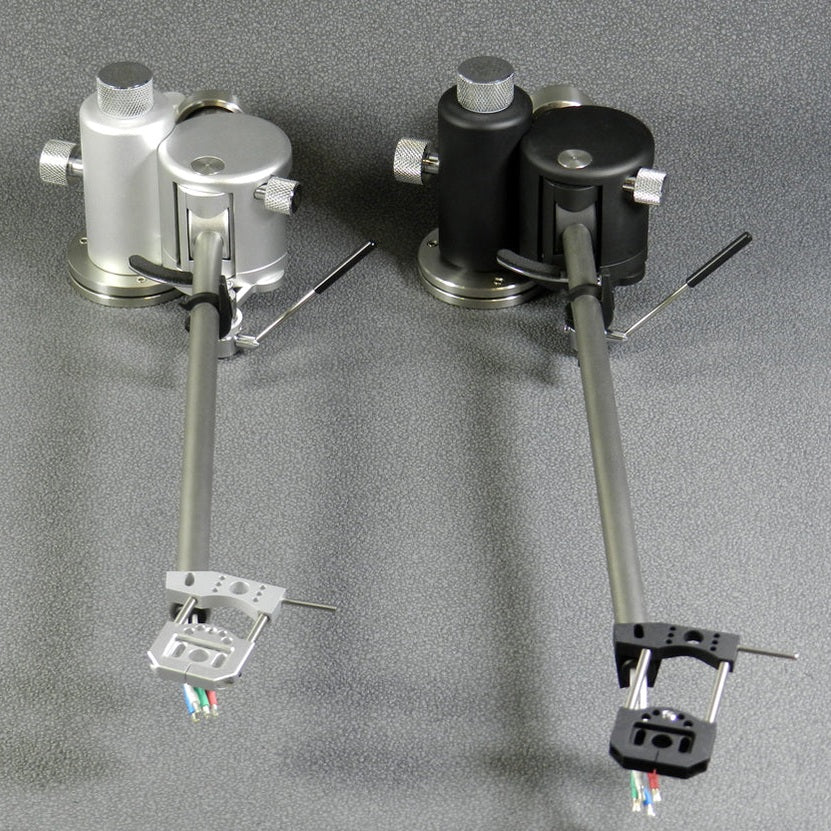

Finish Options

The AQUILAR is beautifully finished in your choice of:

  • Black Satin Matt

  • Ceramic-Alloy Silver Matt

Both finishes look stunning on reference tables such as Kronos, TechDAS Air Force (AFO / AF2), and Sperling.

Mounting Options

User-changeable mounting plates allow the AQUILAR to adapt to virtually any turntable:

  • Flat Top Mount Plate
    (Tri-Planar, Jelco, DaVinci style)

  • SME-Style Drop-In Replacement

Drop-in compatible with:
SME IV, SME V, SME 309, Tri-Planar, DaVinci, Jelco, Graham Supreme, Graham Elite — without altering the pre-drilled armboard.

Golden Ratio & Feng-Shui Design Harmony

Every proportion within the AQUILAR follows the Golden Ratio harmonics and is aligned with Feng-Shui principles. This is not just engineering — it is acoustical architecture designed to achieve balance, purity, and natural musical flow.

Made Entirely in Southern Bavaria, Germany

From materials sourcing to machining, finishing, and assembly, every part of the AQUILAR is produced in-house in Bavaria. Each tonearm is individually hand-crafted, tested, and signed off by Acoustical Systems’ master artisans.

Available Now at Sunny Components Inc. – Covina, CA

We proudly demonstrate the AQUILAR in our reference analog system. Local installation and complete cartridge alignment services are offered for our customers. Experience what world-class mechanical engineering can reveal from your vinyl collection.
