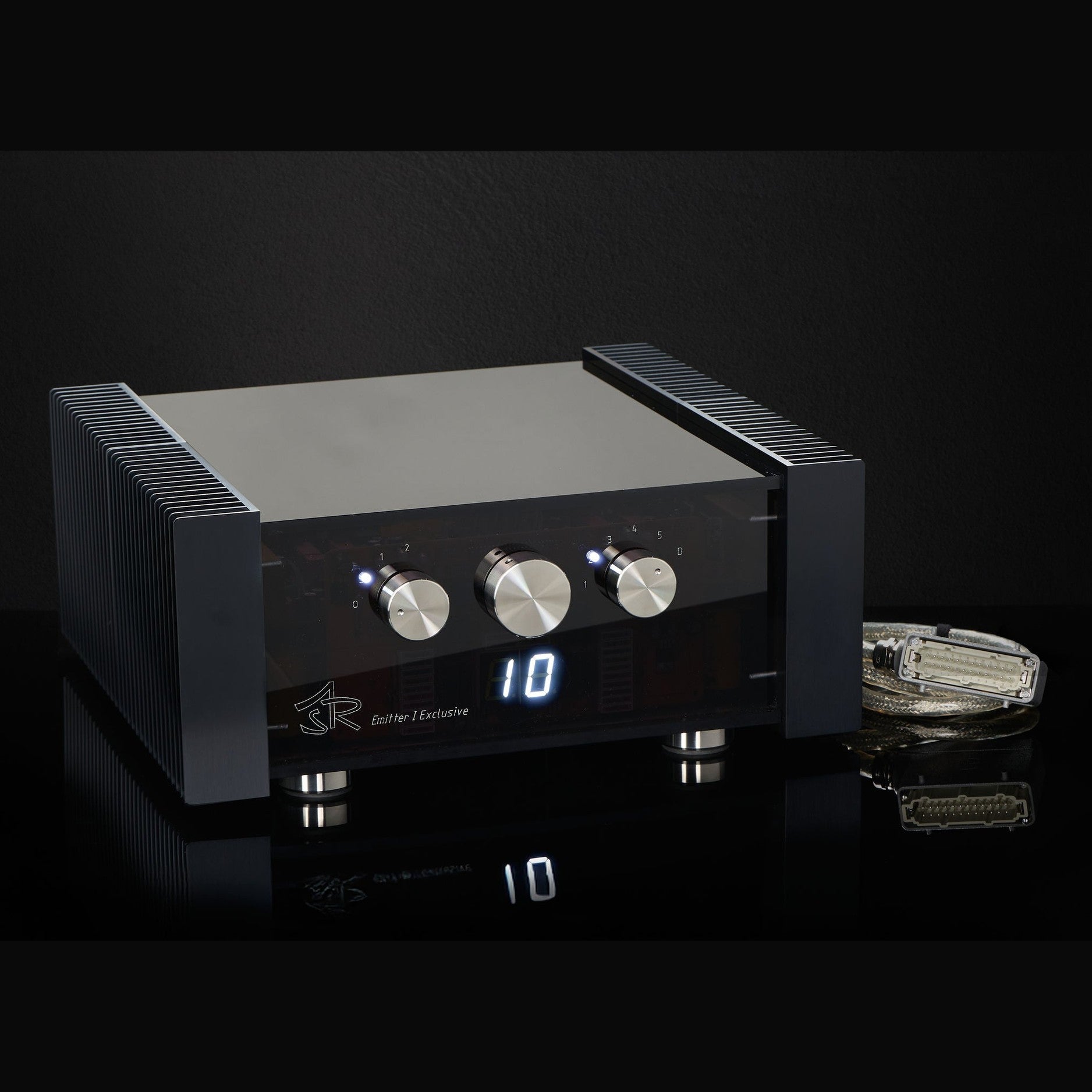

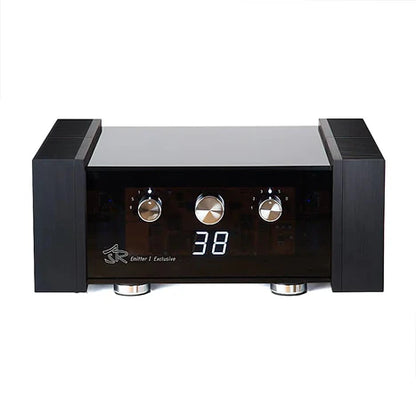

ASR Emitter I Exclusive

 High End solid-state integrated power amplifier, 2x 290 W / 4 Ohm,
prepared for battery PSU separate Philbert core trafo PSU, ASR Magic-Cord power cable 150 cm, ASR Corian remote
Brass block on input and Offset IC, Ic´s and Input elkos in HV version,
Split supply for six voltages of both channels, 606.440 µF capacity
HV = higher voltage 80 V Elkos on double layer boards for the output stage
3x input standard RCA, 1x input WBT CU RCA, 1x balanced (XLR), 1x direct-input, 1x tape out
Elma-Switches, Copal-Encoder, adjustable Pre-Output for subwoofer, etc.
8 mm silver ground cable, active power parts, built in PSU
2 cables from the main unit to PSU: each 250 cm, 4 pcs. massive metal feets

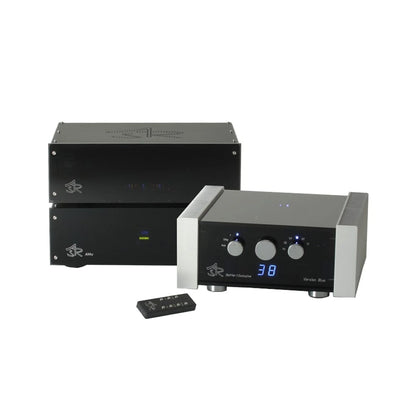

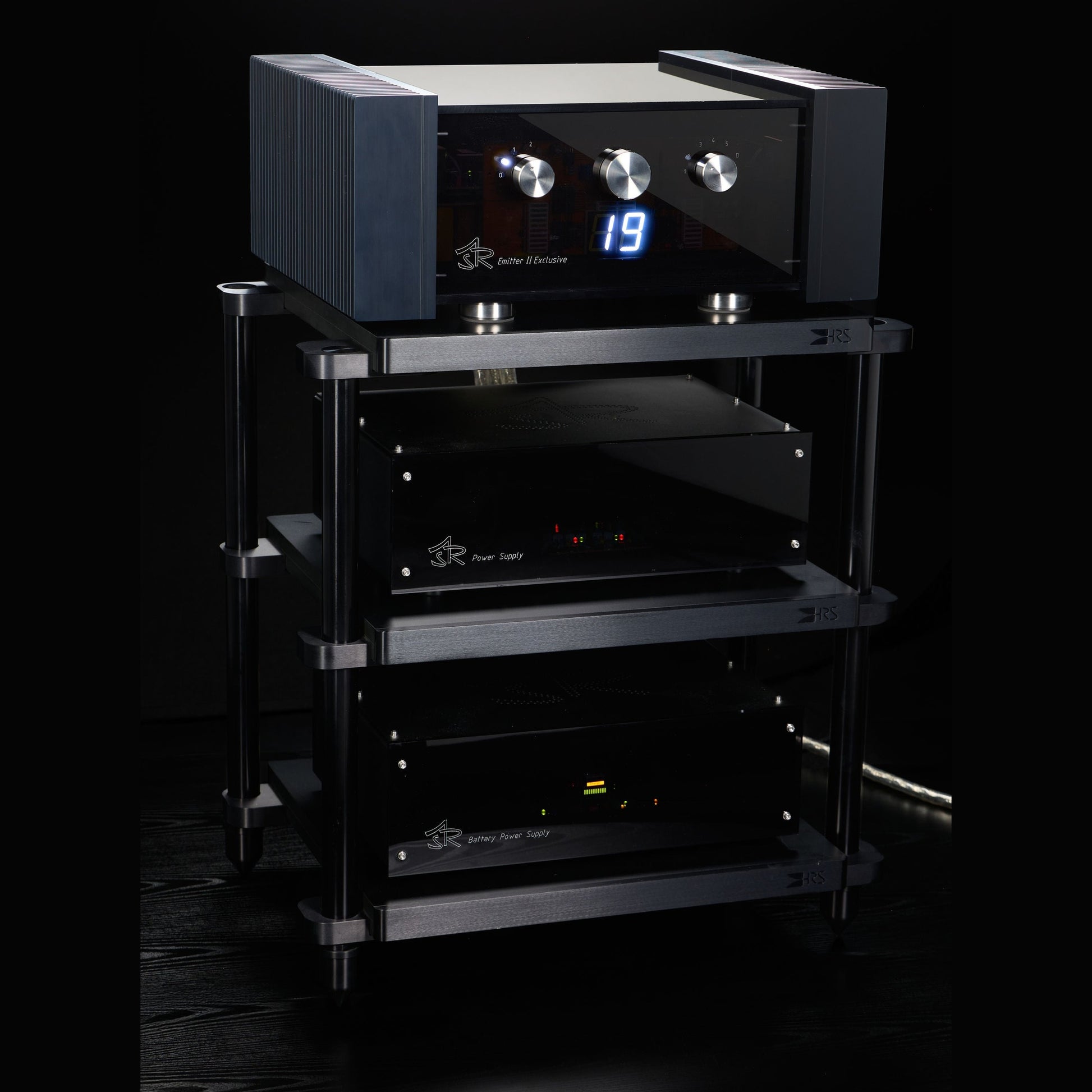

extra battery psu Optional battery power supply, for batt-prepared version, with HV 40 Volt Elkos
